The IMAX B6 is the charger we use for the LiPo Drone batteries.
It can operate on either mains power at home or from an external 12v battery down at the beach.

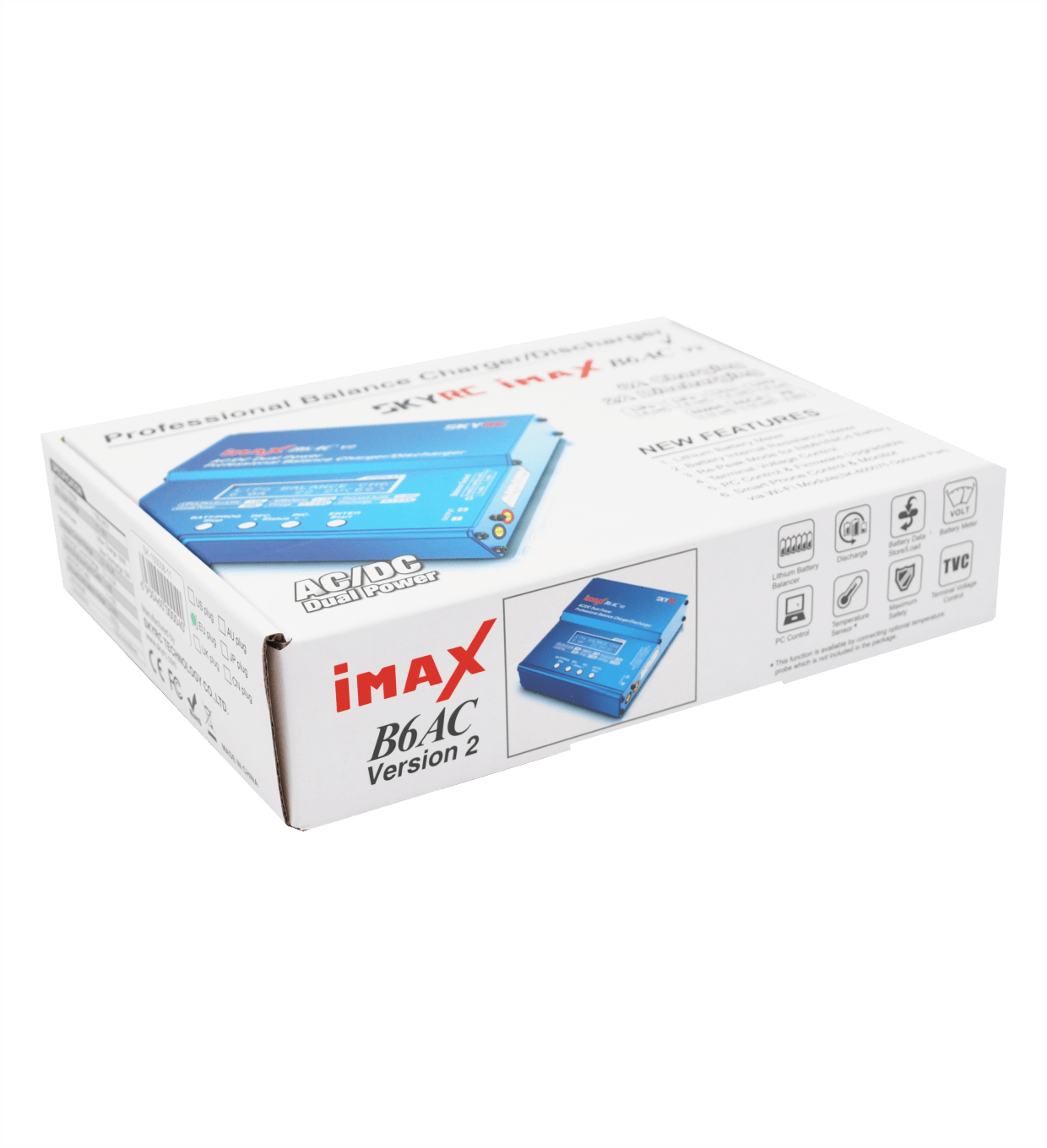

SKYRC B6AC V2 is the upgraded version of the well-known iMAX B6AC.
Compared with iMAX B6AC, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to a PC for PC control and firmware upgrade. What’s more, users could also use it as a Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.
SKYRC B6AC V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Voltage, Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.
• AC 100~240v or 12V DC input
• Microprocessor controlled
• Delta-peak sensitivity
• Individual cell balancing
• Li-ion, LiPo and LiFe capable
• Ni-Cd and NiMH capable
• Store function, allows safe storage current
• Time limit function
• Data storage (Store up to 5 packs in memory)
• Input voltage monitoring. (Protects car batteries at the field)
• Battery break-in and cycling
AC Input Voltage – 100-240V
DC Input Voltage – DC11-18V
Max Charge: 50W
Max Dischage: 5W
Charge Current Range – 0.1-6.0A
Discharge Current Range – 0.1-2.0A
LiPo/LiFe/LiIon Cells – 1-6S
NiMH/NiCd Cells – 1-15S
Pb battery Voltage – 2-20V
Net Weight – 632g
Length ： 144mm
Width ： 135mm
Height ： 36mm
